Lesson 7 Using multiple monitors
Objective Use the multiple display configuration to configure multiple monitors.

Using Multiple Monitors

The ability to spread your desktop across two or more monitors is a great benefit to anyone who needs to display many windows on the desktop at the same time and move the cursor freely from one screen to another. This could include:
  1. Artists who design complex graphics and manipulations
  2. Writers who need to cut and paste between documents or consult multiple research sources simultaneously

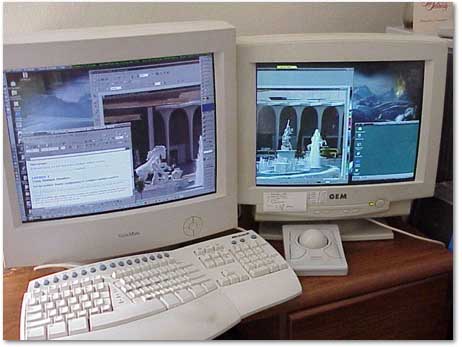

The following image shows how two monitors could be used simultaneously:

Multiple monitors
Multiple monitors

The primary monitor

The primary monitor is the one recognized by the system BIOS at bootup. Even after you've installed one or more additional adapter cards and monitors, your primary monitor will still serve as the central focus of activity, which means that logon screens and programs will continue to default to this monitor.

Display adapters

To be compatible with multiple monitor support, the display adapters must be PCI and/or AGP. You can use both an AGP and a PCI adapter together, but the PCI adapter usually must be configured as the primary adapter. Usually, each monitor will need to be supported by a separate adapter. However, there are special display adapters available that will allow the connection of more than one monitor. With these, the multiple display is configured via the hardware.

Installing and configuring additional monitors

To install and configure additional monitors
  1. Turn off your computer
  2. Insert an additional PCI or AGP video adapter into an available slot
  3. Plug your additional monitor into the card.
  4. Turn on your computer. Windows 2000 will detect the new video adapter and install the appropriate drivers.
  5. Once your computer has restarted, perform the steps shown in the following simulation.
Installing Additional Monitors

Arranging multiple monitors

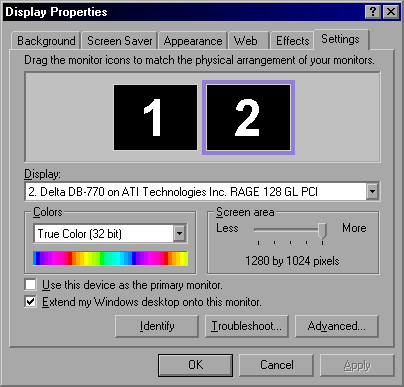

Using the icons in the Display Properties dialog box, shown below
Display Properties tab
Display Properties tab
Drag the monitor icons to arrange them according to how you want them. The icon positions determine how you move items from one monitor to another. For example, in the example above, if you are using two monitors and you want to move items from one monitor to the other by dragging left and right, place the icons side by side. To move items between monitors by dragging up and down, place the icons one above the other.
Question: What is an alternate (and faster) method of accessing the Display Properties dialog box, other than
Start | Settings | Control Panel | Display?

Answer: Right-click any empty space on the desktop and select Properties.
In the next lesson, you will learn how to arrange multiple monitors.
