Module 3 Summary: Designing TCP/IP Solutions

This module provided comprehensive coverage of TCP/IP network design fundamentals, from protocol architecture to practical implementation. You've explored the essential principles, decisions, and methodologies required to design effective, scalable TCP/IP networks for modern enterprise environments.

Lesson 1: Introduction to Designing TCP/IP Solutions

Key Concepts:

• Why TCP/IP became the universal networking standard
• Platform independence and scalability advantages
• Fundamental design elements: addressing, routing, services, security
• Critical planning areas for effective TCP/IP deployment

Lesson 2: TCP/IP Protocol Suite Components

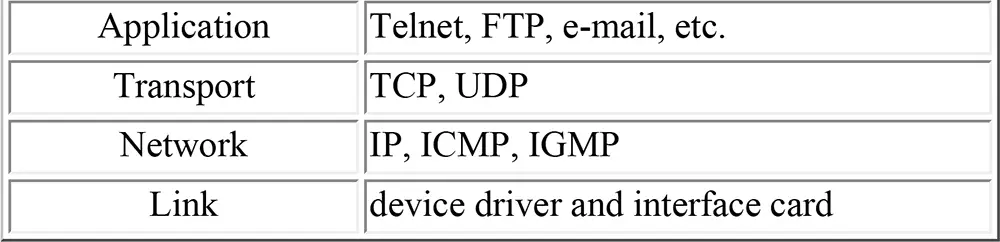

Four-Layer Architecture:

Key Protocols:

• IP: Logical addressing and packet routing
• TCP: Reliable, ordered delivery with flow control
• UDP: Fast, lightweight transport for time-sensitive applications
• ICMP: Error reporting and network diagnostics (ping, traceroute)
• ARP: Maps IP addresses to MAC addresses

Lesson 3: Design Decisions for TCP/IP Solutions

Critical Factors:

1. Host Count: Current and projected device population determines addressing strategy
2. Public vs. Private Addressing: Cost, security, and Internet requirements drive choice
3. Physical Topology: Subnet count based on WAN links, sites, and network segments
4. Infrastructure: Layer 1/2 technologies (Ethernet speeds, wireless standards)

Authentication Architecture:

• Kerberos (preferred for Active Directory)
• LDAPS for directory services
• RADIUS for VPN and network access control
• Modern security: IPsec, TLS 1.3, encryption throughout

Lesson 4: TCP/IP Features and Functionality

Seven Essential Features:

1. Security: IPsec (AES encryption, SHA-256 authentication), TLS, packet filtering
2. QoS (Quality of Service): Bandwidth management, traffic prioritization (DSCP marking)
3. APIPA: Automatic private addressing (169.254.0.0/16) for DHCP-less scenarios
4. ICMP Router Discovery: Automatic gateway detection
5. NetBIOS Management: Disable legacy protocols in modern networks
6. TCP Window Scaling: Improves performance over high-bandwidth or high-latency links
7. Selective Acknowledgment (SACK): Efficient retransmission during packet loss

Standards Development:

• IETF develops Internet standards through open RFC process
• Vendor-neutral, publicly available specifications
• Community-driven evolution ensures interoperability

Lesson 5: Designing Functional TCP/IP Solutions

IP Addressing Methodologies:

Method	Characteristics	Use Case
Classful	Fixed masks (Class A/B/C), wasteful, legacy	Obsolete - avoid in new designs
CIDR	Flexible prefix lengths (/24, /26, /30)	Modern standard for all networks
VLSM	Variable masks within same network	Optimal address utilization

Routing Protocol Requirements:

• RIPv1: Classful only (obsolete)
• RIPv2, OSPF, EIGRP: Support CIDR and VLSM (modern deployments)

Lesson 6: IP Addressing for Private Networks

RFC 1918 Private Address Ranges:

• 10.0.0.0/8: 16.7 million addresses (large enterprises)
• 172.16.0.0/12: 1 million addresses (medium organizations)
• 192.168.0.0/16: 65,536 addresses (small businesses)

Public vs. Private Decision Matrix:

Factor	Public	Private (RFC 1918)
Cost	High ($20-50/address)	Free
Scalability	Limited by availability	Virtually unlimited
Security	Higher exposure	Natural isolation via NAT

NAT Implementation:

• Static NAT: One-to-one mapping for servers
• Dynamic NAT: Pool of public IPs for outbound connections
• PAT (Overload): Many internal hosts share single public IP (most common)

Hybrid Approach: Most organizations use private addressing internally with NAT, reserving public IPs only for external-facing services (web, mail, VPN).

Lesson 7: IP Address Subnet Requirements

Subnet Design Principles:

• Inverse Relationship: More subnet bits = more subnets but fewer hosts per subnet
• Formulas:
  • Subnets: 2ⁿ (n = borrowed bits)
  • Hosts per subnet: 2^h - 2 (h = remaining host bits)

Hosts per Subnet Considerations:

1. Bandwidth utilization and broadcast domain size
2. Router performance limitations
3. Application requirements (VoIP, video, databases)
4. Future growth projections (reserve 30-50% capacity)

Number of Subnets Required:

1. WAN connections (each link needs dedicated subnet)
2. Security zones (DMZ, internal, management, guest)
3. Departmental segmentation
4. Service networks (VoIP, printers, IoT)
5. Growth capacity (reserve 50-100% extra subnets)

Practical Examples:

• /26 mask: 4 subnets with 62 hosts each
• /28 mask: 16 subnets with 14 hosts each
• /30 mask: 64 subnets with 2 hosts each (WAN links)

Lesson 8: IP Configuration Methodology

Three Configuration Methods:

1. Static (Manual) Assignment:
   • For: Servers, routers, infrastructure devices
   • Benefit: Predictable addressing
   • Drawback: Administrative overhead
2. DHCP Dynamic Assignment:
   • For: Workstations, laptops, mobile devices
   • Benefit: Automatic configuration, centralized management
   • Drawback: Requires DHCP infrastructure
3. DHCP Reservations:
   • For: Printers, conference room devices, department servers
   • Benefit: Consistent addressing with centralized management
   • Drawback: Tied to MAC address (requires update if NIC replaced)

APIPA (Fallback):

• Self-assigns 169.254.x.x address when DHCP unavailable
• Enables basic local connectivity without configuration
• Link-local only (no routing, no Internet access)
• In enterprise: usually indicates DHCP problem requiring troubleshooting

Modern Name Resolution:

• DNS: Primary method for all networks
• mDNS: Zero-configuration for local .local domains
• Legacy (avoid): NetBIOS, WINS (security and performance concerns)

Upon completing this module, you should be able to:

1. Define TCP/IP protocol suite components and explain the four-layer architecture (Network Interface, Internet, Transport, Application)
2. Identify design decisions that influence TCP/IP solutions, including host count, addressing strategy, topology, and infrastructure
3. Describe TCP/IP features including security (IPsec), QoS, APIPA, performance enhancements (window scaling, SACK), and diagnostic protocols (ICMP)
4. Apply addressing methodologies using CIDR notation, VLSM, and appropriate routing protocols
5. Evaluate public versus private addressing schemes and implement NAT for Internet connectivity
6. Calculate subnet requirements by determining optimal number of subnets and hosts per subnet based on current needs and growth projections
7. Select appropriate configuration methods (static, DHCP, reservations) based on device type and requirements

Performance:

• Right-size subnets to limit broadcast domains
• Implement QoS for time-sensitive applications
• Monitor bandwidth utilization per segment
• Use TCP window scaling for high-bandwidth or high-latency links

Security:

• Use private addressing with NAT for internal networks
• Implement IPsec for sensitive communications
• Segment networks by security zone (DMZ, internal, management)
• Disable legacy protocols (NetBIOS, LLMNR where not needed)

Scalability:

• Reserve 30-50% capacity for host growth per subnet
• Reserve 50-100% extra subnets for future segmentation
• Use VLSM to optimize address space utilization
• Document addressing scheme in IPAM system

Operational Excellence:

• Use DHCP for clients to reduce configuration errors
• Implement standardized naming conventions
• Maintain comprehensive network documentation
• Plan for IPv6 adoption with dual-stack configuration

Well-designed TCP/IP networks deliver:

• Optimal Performance: Efficient routing, minimal latency, appropriate QoS
• Enhanced Security: Proper segmentation, isolation of sensitive systems
• Operational Efficiency: Simplified troubleshooting, automated configuration
• Cost Effectiveness: Efficient address utilization, reduced support burden
• Future-Proofing: Capacity for growth without disruptive renumbering

Consequences of Poor Design:

• Network performance degradation (excessive broadcasts, routing inefficiencies)
• Address exhaustion requiring costly renumbering projects
• Security vulnerabilities from inadequate segmentation
• Operational complexity and difficult troubleshooting
• Limited growth capacity

The investment in thorough TCP/IP design pays dividends for years through improved performance, security, and operational simplicity.

The TCP/IP protocol suite represents one of the most successful open standards in computing history. What began in the late 1960s as a government-funded research project into packet switching networks has evolved into the universal language of computer networking.

Why TCP/IP Succeeded:

• Open Standards: Publicly available specifications developed by IETF
• Vendor Neutral: No single company controls the protocol
• Platform Agnostic: Runs on any operating system and hardware
• Network Independent: Functions over any physical medium
• Scalable: From two devices to billions on the Internet

TCP/IP forms the foundation of the global Internet, connecting billions of devices worldwide. Its flexibility, robustness, and extensibility ensure it will remain the dominant networking protocol for the foreseeable future.

The next module examines securing TCP/IP networks, building on the design fundamentals covered here. Topics include firewall implementation, VPN configuration, intrusion detection, and defense-in-depth security architecture.
